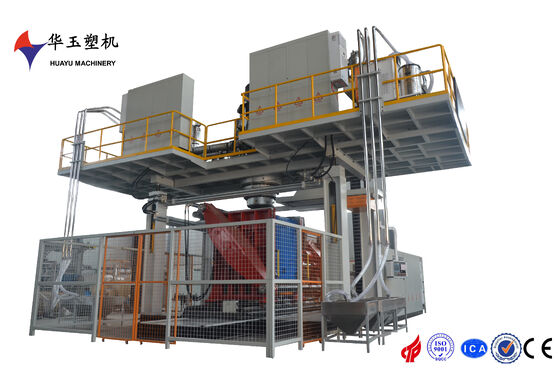

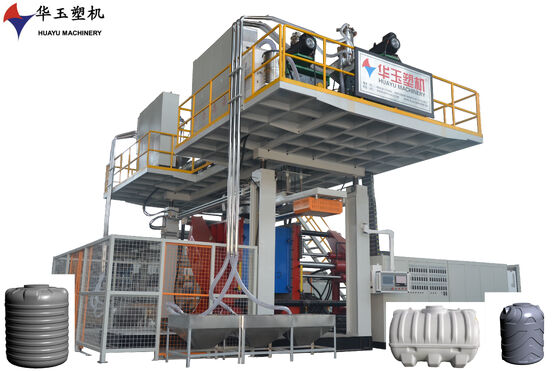

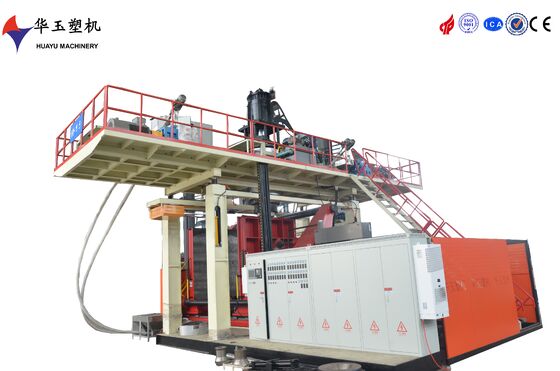

5000L Capacity 4-Layer Co-Extrusion High-Precision IBC Blow Molding Machine for Large Plastic Products
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | Huayu |
| 인증 | CE,ISO9001 |
| 모델 번호 | HyBM-5004 |
| 최소 주문 수량 | 1 세트 |
| 가격 | Negotiate |
| 포장 세부 사항 | 컨테이너별 |
| 배달 시간 | 4개월 |
| 지불 조건 | 신용장, 티/티 |
| 공급 능력 | 달 당 4 세트 |
제품 상세 정보
| 금형재료 | 알루미늄 합금 | 전원 공급 장치 | 380V, 50Hz, 3 상 |
|---|---|---|---|
| PLC | 지멘스 | 제품 소재 | HDPE |
| 용량 | 5000 리터 | 레이어 | 4개의 층 |
| 강조하다 | 5000L IBC blow molding machine,4-layer co-extrusion blow molder,high-precision IBC tank machine |
||
제품 설명
5000L 4-Layer Large High-Precision Water Tank Blow Molding Machine with Efficient
This high-precision blow molding machine with a 5000L capacity and 4-layer co-extrusion is designed for producing high-quality, multi-layered plastic products. The integrated water tank system ensures accurate temperature control and consistent cooling, resulting in superior product quality. The machine's advanced control system offers precise control over the molding process, ensuring consistent product dimensions and quality. Its durable construction and reliable performance make it suitable for industries requiring high-precision plastic products. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.
Blowing and Cooling System Specifications
| Stretching Stroke | According to products |
| Blow Pin Up/Down Stroke | 600mm |
| Air Seat Stroke | 400mm |
| Maximum Air Pressure | 0.8Mpa |
| Air Consumption | 3m³/min |
| Cooling Method | Circulating Water |
| Water Pressure | 0.3MPa |
| Cooling Water Consumption | 75m³/h |
Hydraulic System Specifications
| Main Oil Tank Capacity | 1500L Servo motor, less energy consumption, high efficiency, low noise |
| Main Oil Pump | Gear Pump 185CC |
| Main Oil Pump Motor | 60kw |
| Servo Oil Tank Capacity | 200L |
| Servo Oil Pump Model | Plunger Pump 35 |
| Servo Oil Pump Motor | 11kw |
