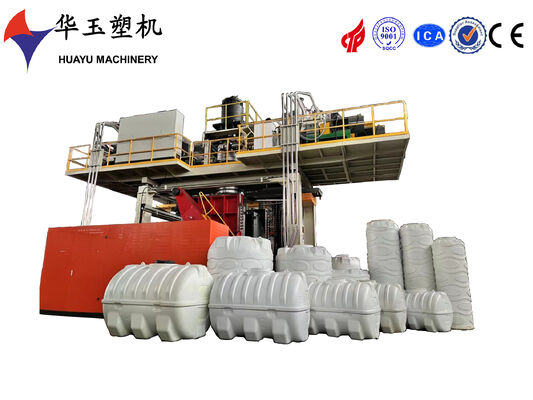

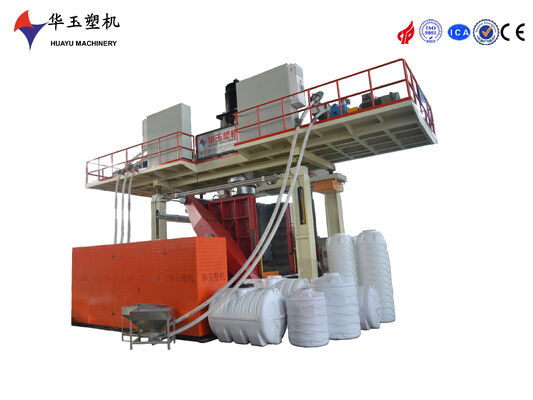

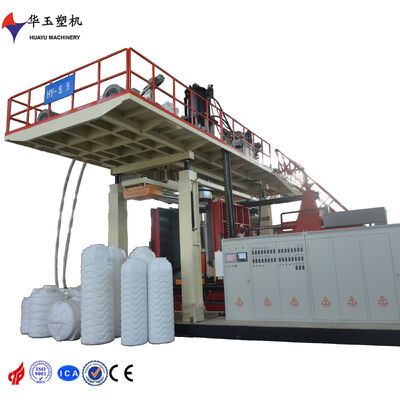

3000L Tri-Layer Drum Blow Molding Machine with Precision Wall Thickness and High-Capacity Output
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | HUAYU |
| 인증 | ISO9001 CE |
| 모델 번호 | HYBM-500-3000L,3레이어 |
| 최소 주문 수량 | 1세트 |
| 가격 | 340000 USD |
| 포장 세부 사항 | 컨테이너 운송을 위해 많은 부품으로 분해됩니다 |
| 배달 시간 | 4개월 |
| 지불 조건 | T/T,L/C |
| 공급 능력 | 1 세트 120 일 |
무료 샘플과 쿠폰을 받으려면 연락하세요.
WhatsApp:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
걱정이 있으시면 24시간 온라인 서비스를 제공합니다.
x제품 상세 정보
| 전압 | 미결정 | 총 전력 | 430KW |
|---|---|---|---|
| 평균 전력 | 290KW | 기계 치수(L*W*H) | 9.5*6.5*8.2 |
| 생산력 | 8~20개/시간 | 나사 직경 | 130/130/mm |
| 나사 L/D 비율 | 28 ： 1 | 축적자 능력 | 90kg |
| Max. 최대. Mould size 금형 크기 | 1800*2200mm(폭*높이) | 최대 공기압 | 0.8Mpa |
| 공기 소비량 | 3m3/Min | ||
| 강조하다 | Tri-Layer Construction Drum Blow Molding Machine,Precision Wall Thickness 3000L Drum Blow Molding Machine,High-Capacity 3000L Drum Blow Molding Machine |
||
제품 설명
3000L Tri-Layer Drum Blow Molding: Where Precision Meets Capacity
Why Choose Our 3000L Tri-Layer Drum Blow Molding Machine?
Advanced Tri-Layer Construction
Engineered for superior durability and structural integrity, ensuring each drum meets the highest standards of quality and performance.
Precision & Efficiency
Delivers consistent wall thickness and precise dimensions, minimizing material waste while maximizing production output.
Uncompromising Durability
Designed to withstand rigorous industrial use, providing long-lasting reliability and reducing maintenance costs over time.
User-Centric Design
Features intuitive controls and a streamlined interface, making operation efficient and accessible for all skill levels.
Industry-Leading Technology
Incorporates cutting-edge extrusion and blow molding techniques to deliver exceptional results in every drum produced.
Eco-Friendly Operation
Optimizes energy usage and reduces environmental impact, aligning with sustainable manufacturing practices.
Versatile Applications
Ideal for producing a wide range of 3000L drums, including those for chemicals, liquids, and bulk storage solutions.
Global Support Network
Backed by a dedicated team of experts providing comprehensive service, training, and technical assistance worldwide.
Hydraulic System Specifications
| Main Oil Tank Capacity | 1500L |
| Main Oil Pump | Gear Pump 185CC |
| Main Oil Pump Motor | 57kW |
| Servo Oil Tank Capacity | 200L |
| Servo Oil Pump Model | Plunger Pump 22 |
| Servo Oil Pump Motor | 7.5kW |
Electronic System Specifications
| Main Operation Panel | Touch Screen 12" |
| Control System | PLC |
| Thickness Control Points | 100 Points |
| Temperature Control | PLC Module |
