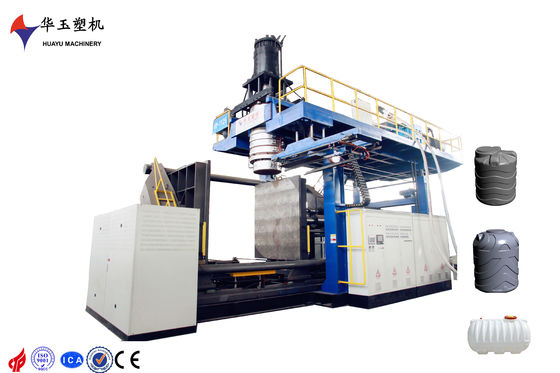

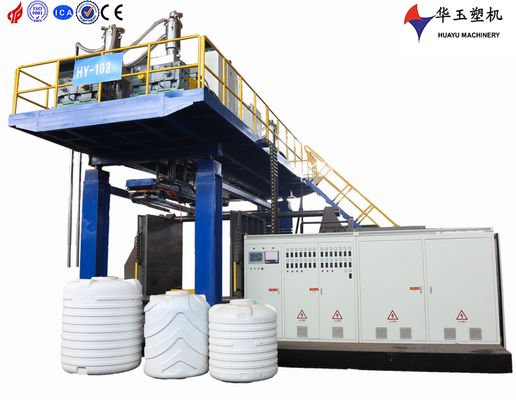

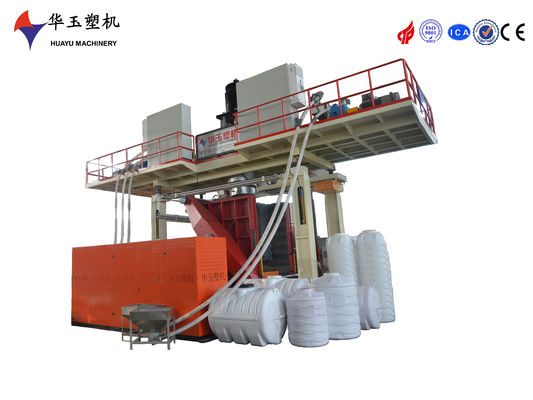

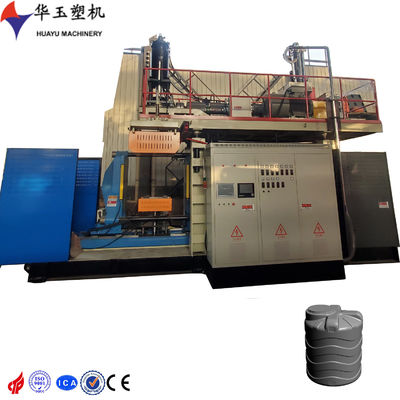

2000L 12-Layer Water Tank Blow Molder – Precision Engineered IBC Tank Blow Molding Machine for Large-Capacity Production
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | HUAYU |
| 인증 | ISO9001 CE |
| 모델 번호 | HYBM-500-2000L,12레이어 |
| 최소 주문 수량 | 1세트 |
| 가격 | 360000 USD |
| 포장 세부 사항 | 컨테이너 운송을 위해 많은 부품으로 분해됩니다 |
| 배달 시간 | 4개월 |
| 지불 조건 | T/T,L/C |
| 공급 능력 | 1 세트 120 일 |
무료 샘플과 쿠폰을 받으려면 연락하세요.
WhatsApp:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
걱정이 있으시면 24시간 온라인 서비스를 제공합니다.
x제품 상세 정보
| 전압 | 미결정 | 총 전력 | 648.5kW |
|---|---|---|---|
| 평균 전력 | 320kW | 생산력 | 10-24pcs/h |
| 나사 직경 | 100mm*7 | 나사 L/D 비율 | 28 ： 1 |
| 축적자 능력 | 60kg | Max. 최대. Mould size 금형 크기 | 1600*2000mm (W*H) |
| 최대 공기압 | 0.8Mpa | 공기 소비량 | 2.3m3/min |
| 강조하다 | 12-Layer Co-Extrusion Water Tank Blow Molder,2000L Large-Capacity Blow Molding Machine,Precision Engineering IBC Tank Blow Molding Machine |
||
제품 설명
2000L 12-Layer Water Tank Blow Molder – Precision Crafted
Core Advantages
- 12-Layer Co-Extrusion Superiority: Multi-layer structure ensures exceptional barrier performance, pressure resistance and durability, ideal for long-term water storage without leakage or deformation.
- 2000L Large-Capacity Efficiency: Engineered to mold full-size 2000L water tanks in one single cycle, drastically cutting production time and boosting overall throughput.
- Precision Engineering for Consistency: High-precision control system guarantees uniform wall thickness across every layer, eliminating defects and ensuring stable product quality batch after batch.
- Industrial-Grade Reliability: Robust frame and high-quality components are built to withstand heavy-duty continuous operation, minimizing downtime and maintenance costs.
- Versatile Material Compatibility: Adaptable to a wide range of raw materials including HDPE, PP and recycled plastics, meeting diverse production needs and sustainability goals.
- User-Centric Intelligent Operation: Intuitive control interface simplifies operation and parameter adjustment, reducing the learning curve for operators and improving production efficiency.
Technical Specifications
Hydraulic System
| Main Oil Tank Capacity | 1200L | Servo motor, less energy consumption, high efficiency, low noise |
| Main Oil Pump | Gear Pump 163CC | |
| Main Oil Pump Motor | 48kW | |
| Servo Oil Tank Capacity | 200L | |
| Servo Oil Pump Model | Plunger Pump 22 | |
| Servo Oil Pump Motor | 7.5kW |
Electronic System
| Main Operation Panel | Touch Screen 12" | |
| Control System | PLC | |
| Thickness Control Points | 200 Points | |
| Temperature Control | PLC Module |
