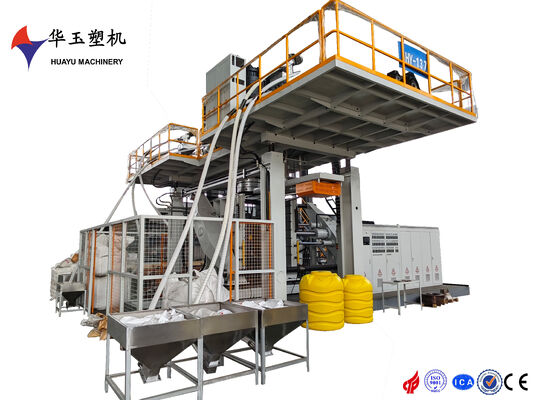

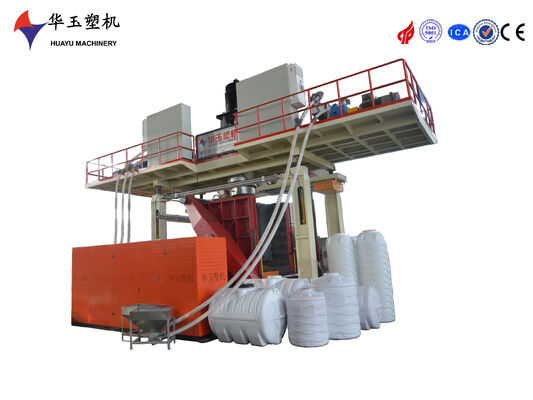

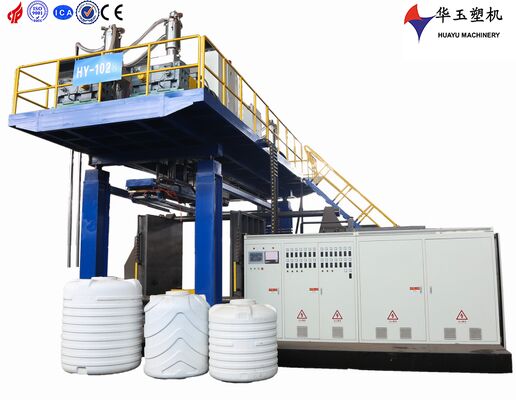

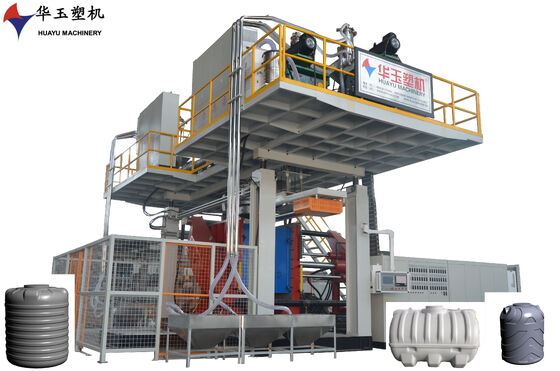

1500L Triple-Layer High Efficiency Water Tank Blow Moulding Machine for Plastic Drum Production
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | HUAYU |
| 인증 | ISO9001 CE |
| 모델 번호 | HYBM-1500L,3레이어 |
| 최소 주문 수량 | 1 세트 |
| 가격 | 200000 USD |
| 포장 세부 사항 | 컨테이너 운송을 위해 많은 부품으로 분해됩니다 |
| 배달 시간 | 4개월 |
| 지불 조건 | T/T,L/C |
| 공급 능력 | 1 세트 120 일 |
무료 샘플과 쿠폰을 받으려면 연락하세요.
WhatsApp:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
걱정이 있으시면 24시간 온라인 서비스를 제공합니다.
x제품 상세 정보
| 전압 | 미결정 | 총 전력 | 435kw |
|---|---|---|---|
| 평균 전력 | 8.5*6*7.2 | 생산력 | 10-24pcs/h |
| 나사 직경 | 110/120/110mm | 나사 L/D 비율 | 28 ： 1 |
| 축적자 능력 | 60kg | Max. 최대. Mould size 금형 크기 | 1600*2000mm (W*H) |
| 최대 공기압 | 0.8Mpa | 공기 소비량 | 1.5M3/min |
| 강조하다 | 1500L Water Tank Blow Moulding Machine,Triple-Layer Blow Molding Equipment,High Efficiency Plastic Drum Blow Molding Machine |
||
제품 설명
Cutting-Edge 3-Layer 1500L Water Bucket Blow Molding Equipment
Introducing our 1500L Triple-Layer Blow Molding Machine: a high-performance solution designed for the production of large, heavy-duty plastic drums and tanks. This machine is built to deliver exceptional quality, operational efficiency, and a rapid return on investment for your business.
Key Advantages
- Triple-Layer Technology: Produce drums with an inner layer for chemical resistance, a middle layer for cost-saving recycled material, and an outer layer for UV protection and durability. This versatility ensures a superior product at a competitive cost.
- High Efficiency & Output: Features a powerful extrusion system and a large accumulator head for stable, high-volume production. The advanced hydraulic clamping unit ensures consistent wall thickness and a fast cycle time, maximizing your daily output.
- User-Friendly & Reliable: Equipped with a state-of-the-art PLC control system with a large touchscreen, making operation and parameter setting simple and intuitive. Its heavy-duty steel frame and precision components guarantee long-term stability and low maintenance.
- Energy & Cost Savings: Incorporates energy-saving motors and optimized heating systems to significantly reduce operational costs. The ability to use recycled material in the middle layer further lowers your raw material expenses.
Applications
Ideal for manufacturing 1500L (and similar large-capacity) plastic drums and tanks for a wide range of industries, including chemicals, pharmaceuticals, food processing, and water treatment.
Choose our 1500L Triple-Layer Blow Molding Machine for a reliable, efficient, and profitable production solution.
Technical Specifications
Hydraulic System
| Specification | Value | Features |
|---|---|---|
| Main Oil Tank Capacity | 1200L | Servo motor, less energy consumption, high efficiency, low noise |
| Main Oil Pump | Gear Pump 160CC | |
| Main Oil Pump Motor | 57kW | |
| Servo Oil Tank Capacity | 200L | |
| Servo Oil Pump Model | Plunger Pump 22 | |
| Servo Oil Pump Motor | 7.5kW |
Electronic System
| Component | Specification |
|---|---|
| Main Operation Panel | Touch Screen 9" |
| Control System | PLC |
| Thickness Control Points | 100 Points |
| Temperature Control | PLC Module |
