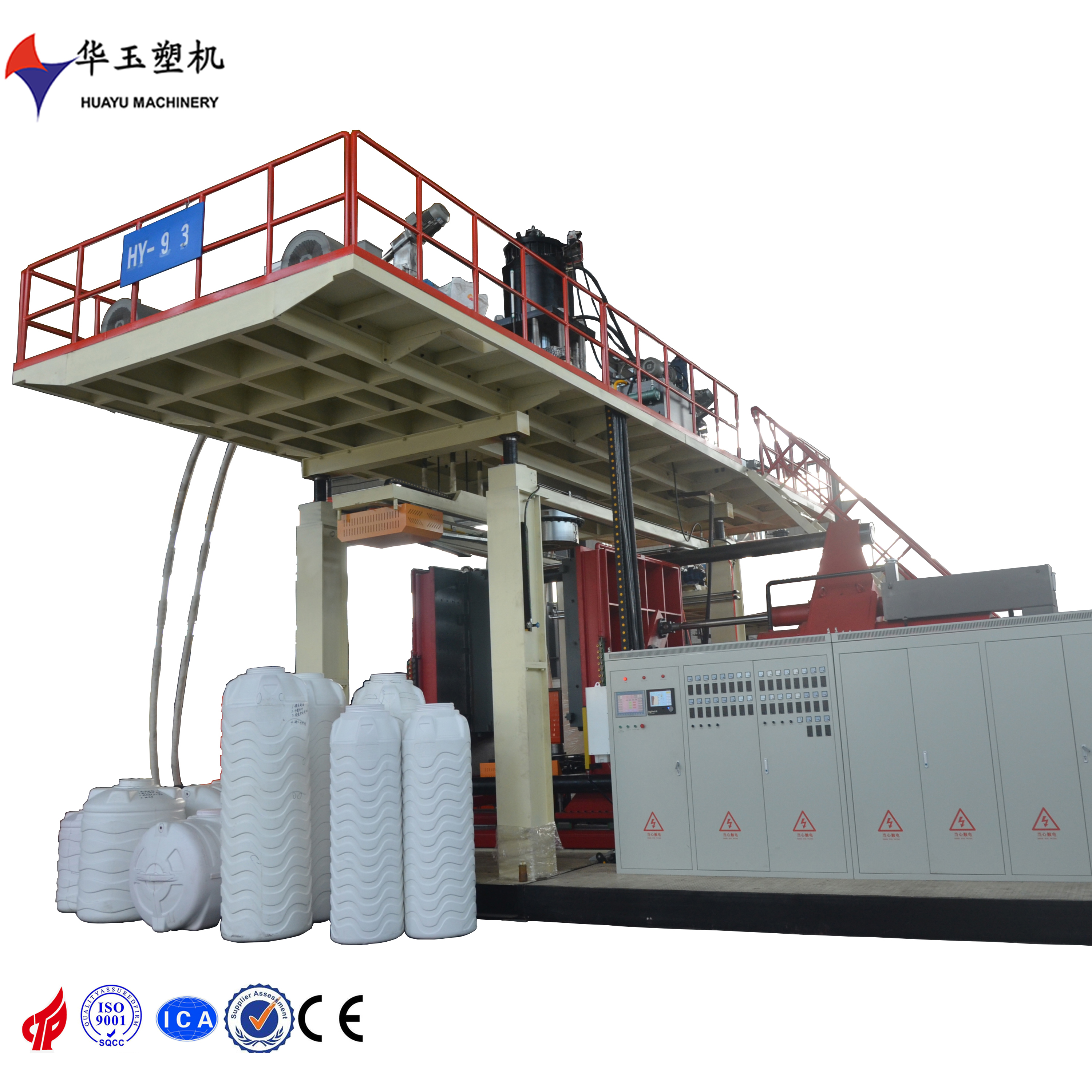

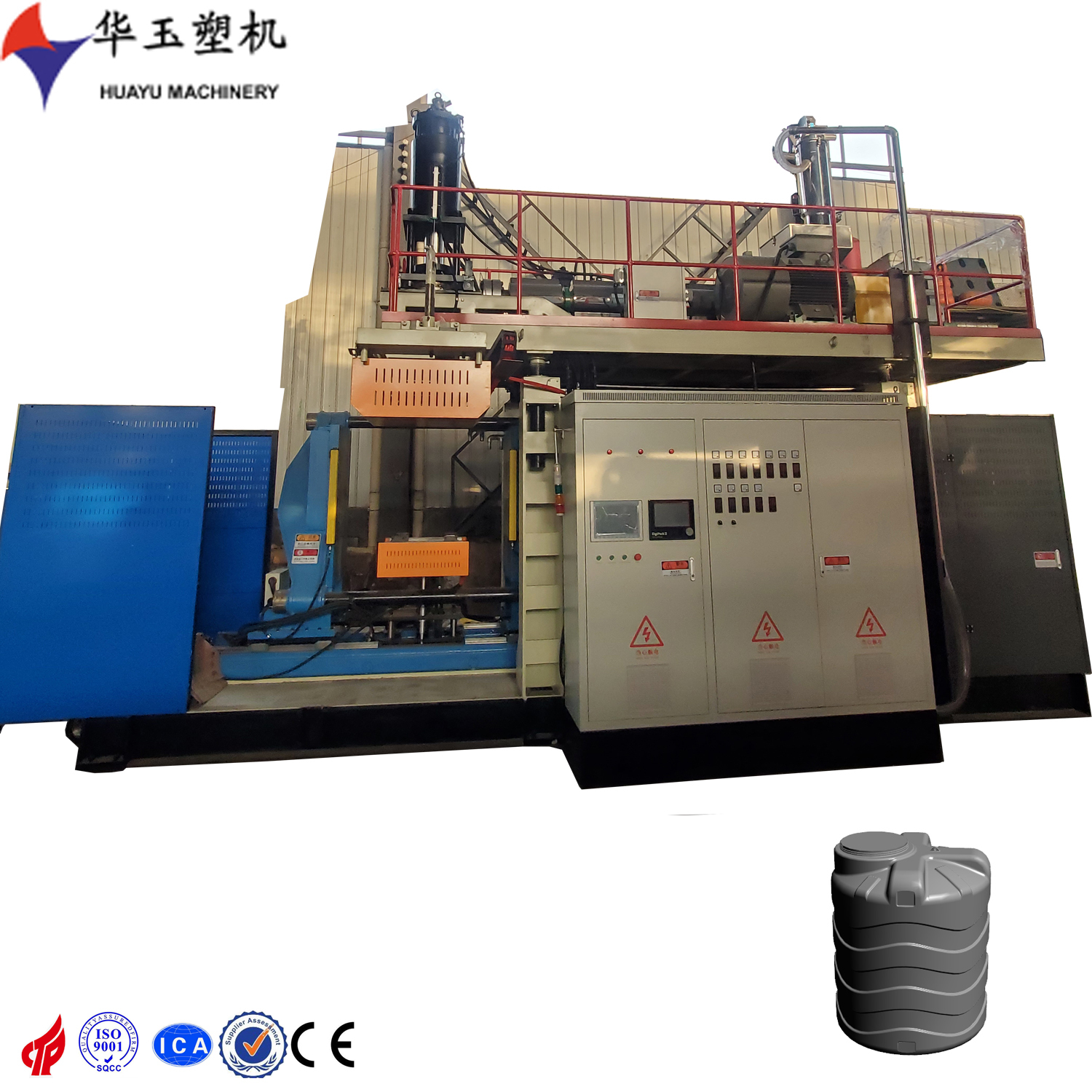

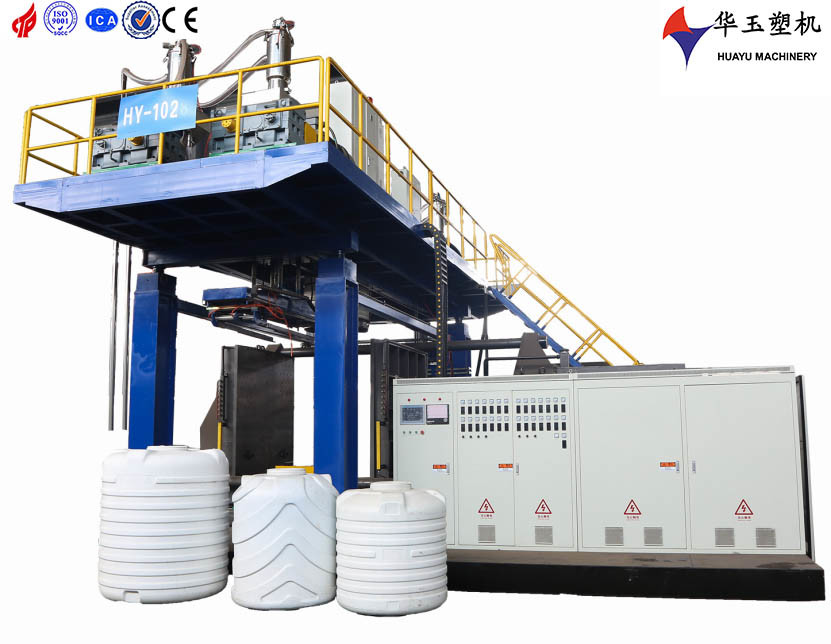

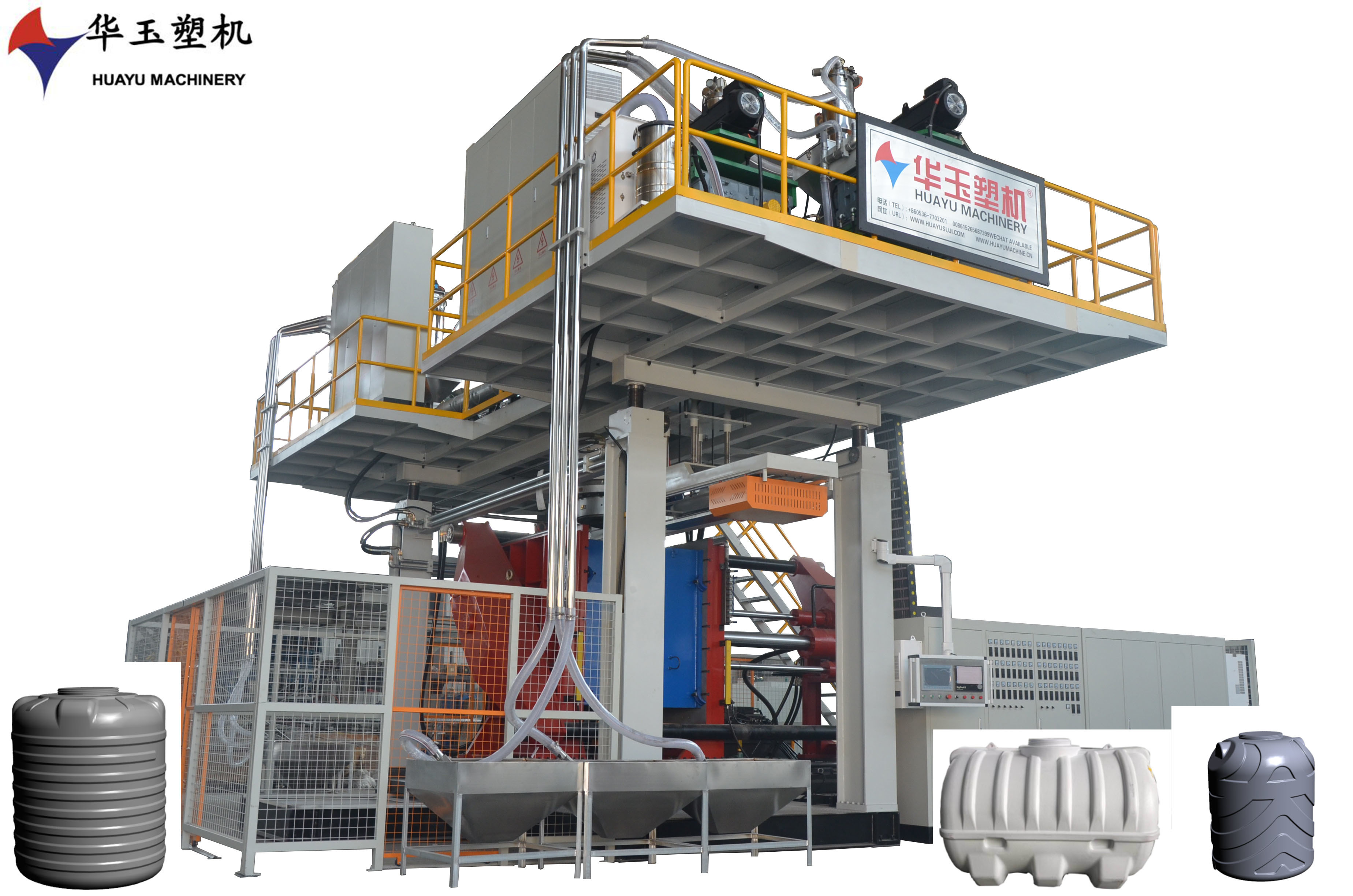

1000L 7-Layer Water Tank Blow Moulding Machine - High Efficiency Blow Molding Equipment
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | HUAYU |
| 인증 | ISO9001 CE |
| 모델 번호 | HYBM 1000L -7레이어 |
| 최소 주문 수량 | 1 세트 |
| 가격 | 280000 USD |
| 포장 세부 사항 | 컨테이너 운송을 위해 많은 부품으로 분해됩니다 |
| 배달 시간 | 4개월 |
| 지불 조건 | T/T,L/C |
| 공급 능력 | 1 세트 120 일 |
무료 샘플과 쿠폰을 받으려면 연락하세요.
WhatsApp:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
걱정이 있으시면 24시간 온라인 서비스를 제공합니다.
x제품 상세 정보
| 전압 | 미결정 | 총 전력 | 585kW |
|---|---|---|---|
| 평균 전력 | 385kw | 기계 치수(L*W*H) | 8*9*6.5 |
| 생산력 | 16-25개/시간 | 나사 직경 | 90mm*7 |
| 나사 L/D 비율 | 28 ： 1 | 축적자 능력 | 50KG |
| Max. 최대. Mould size 금형 크기 | 1400*1500mm(폭*높이) | 최대 공기압 | 0.8Mpa |
| 공기 소비량 | 1.5M3/min | ||
| 강조하다 | 7-Layer Structure Water Tank Blow Moulding Machine,1000L Capacity Blow Molding Equipment,High Efficiency Plastic Water Tank Making Machine |
||
제품 설명
Top-Tier 1000L 7-Layer Water Container Blow Molding Equipment
Advanced blow molding machine engineered for high-volume production of durable 7-layer water containers with superior performance characteristics.
Key Advantages
- Maximum Strength & Durability: 7-layer structure creates impact-resistant tanks built for long-term performance
- Superior Water Quality: Specialized barrier layer prevents oxygen ingress, reducing algae growth and maintaining water freshness
- Long-Lasting Outdoor Performance: UV-protected outer layer prevents fading, cracking, and degradation from sunlight exposure
- Significant Material Cost Savings: Strategic material placement allows use of premium resins only where needed, with cost-effective or recycled materials in core layers
- High Efficiency & Low Unit Cost: Optimized for fast cycle times and high-volume production, reducing per-unit manufacturing costs
Hydraulic System Specifications
| Main Oil Tank Capacity | 890L |
| Main Oil Pump | Gear Pump 125CC |
| Main Oil Pump Motor | 37kW |
| Servo Oil Tank Capacity | 200L |
| Servo Oil Pump Model | Plunger Pump 22 |
| Servo Oil Pump Motor | 7.5kW |
Electronic Control System
| Main Operation Panel | 12" Touch Screen |
| Control System | PLC |
| Thickness Control Points | 200 Points |
| Temperature Control | PLC Module |
