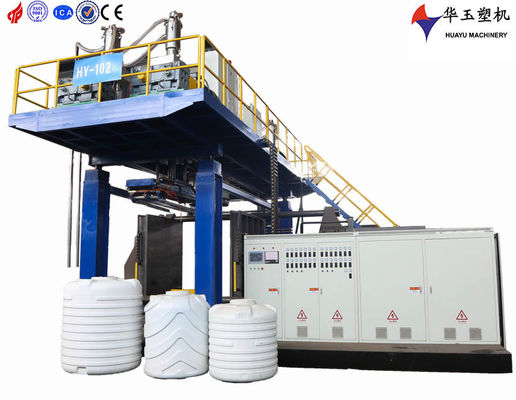

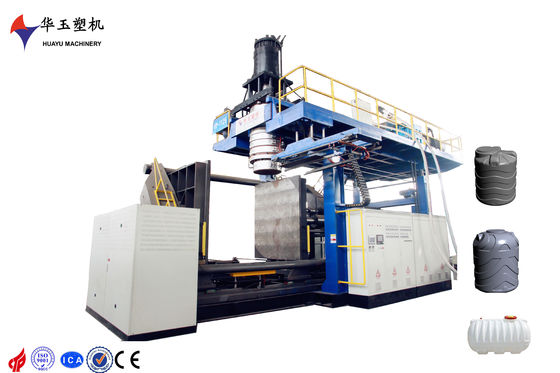

Pro-Grade Water Tank Blow Molding Machine with 2000-10000L Capacity, Precise Molding Control, and Energy Efficient Design
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | HUAYU |
| 인증 | ISO9001 CE |
| 모델 번호 | HYBM-10000L 1레이어 |
| 최소 주문 수량 | 1 세트 |
| 가격 | 140000 USD |
| 포장 세부 사항 | 컨테이너 운송을 위해 많은 부품으로 분해됩니다 |
| 배달 시간 | 4개월 |
| 지불 조건 | T/T,L/C |
| 공급 능력 | 1 세트 120 일 |
무료 샘플과 쿠폰을 받으려면 연락하세요.
WhatsApp:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
걱정이 있으시면 24시간 온라인 서비스를 제공합니다.
x제품 상세 정보
| 용량 범위 | 2000-10000L,1층 | 전압 | 미결정 |
|---|---|---|---|
| 총 전력 | 690kW | 평균 전력 | 390kW |
| 기계 치수(L*W*H) | 15*9*11 | 생산력 | 2-12개/시간 |
| 나사 직경 | 150/150/mm | 축적자 능력 | 300kg |
| 다이 경 | 제품에 따르면 | Max. 최대. Mould size 금형 크기 | 2600*3000mm(폭*높이) |
| 최대 공기압 | 0.8Mpa | 공기 소비량 | 2m3/min |
| 강조하다 | 2000-10000L Capacity Water Tank Blow Molding Machine,Precise Molding Control IBC Tank Blow Molding Machine,Energy Efficient Blow Molding Machine |
||
제품 설명
Pro-Grade Water Tank Blow Molding Machine
A specialized industrial machine engineered for producing plastic water buckets and food-grade water containers using advanced blow molding technology. This compact, user-friendly equipment delivers efficient and reliable production performance with precise molding control systems that ensure consistent product quality. The machine produces containers with smooth surface finishes and robust structural integrity that meet strict hygiene and safety standards for food-contact applications.
With flexible adaptability to various bucket designs and food-safe plastic materials, it serves diverse production requirements in household, beverage, and packaging sectors. The optimized operational workflow minimizes disruptions, while ergonomic and energy-efficient features enhance usability and align with sustainable manufacturing principles, making it an indispensable tool for businesses focused on high-quality water container production.
Hydraulic System Specifications
| Main Oil Tank Capacity | 1500L | Servo motor, less energy consumption, high efficiency, low noise |
| Main Oil Pump | 160*2 | |
| Main Oil Pump Motor | 57kW*2 | |
| Servo Oil Tank Capacity | 200L | |
| Servo Oil Pump Model | Plunger Pump 33 | |
| Servo Oil Pump Motor | 15kW |
Electronic Control System
| Main Operation Panel | Touch Screen 9" | |
| Control System | PLC | |
| Thickness Control Points | 100 Points | |
| Temperature Control | PLC Module |
