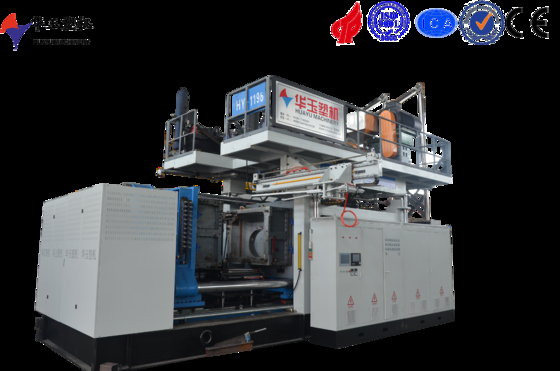

3000L 2-Layer Large Heavy-Duty Water Tank Blow Molding Machine

원래 장소 중국
브랜드 이름 HUAYU
인증 ISO9001 CE
모델 번호 HyBM3002
최소 주문 수량 1세트
가격 290000 USD
포장 세부 사항 컨테이너 운송을 위해 많은 부품으로 분해됩니다
배달 시간 4 개월
지불 조건 T/T,L/C
공급 능력 1 세트 120 일

무료 샘플과 쿠폰을 받으려면 연락하세요.

WhatsApp:0086 18588475571

웨이 채팅: 0086 18588475571

스카이프: sales10@aixton.com

걱정이 있으시면 24시간 온라인 서비스를 제공합니다.

x
제품 상세 정보
연도 2024 내구성 훌륭한
기계 크기 5.0x2.4x3.8M 뻗치는 타격 제품에 따르면
재료 LDPE, HDPE, PP 재활용 성 재활용 가능
오토메이션 완전 자동 최대 제품 높이 1500-2500mm
전압 380V/50Hz Platen 크기 2200*2400*70mm
기계 시험 보고서 제공 압출기 모터 37/37/37/37/37kW
압출기 모터 110/90*2/15*3 압출기 모터 파워 110kW
냉각 수압 0.3-0.6MPA
강조하다

3000L water tank blow molding machine

,

heavy-duty water tank molding equipment

,

2-layer large water tank machine

필요한 제품을 선택하고 게시판에서 당사와 소통 할 수 있습니다.
메시지를 남겨주세요
제품 설명

This 3000L two-layer heavy-duty blow molding machine is designed for producing multi-layer plastic products with enhanced durability and performance. The dual-layer co-extrusion system allows for advanced material combinations, providing better barrier properties and improved product strength. The heavy-duty water tank cooling system ensures efficient heat dissipation and maintains optimal operating temperatures, enhancing production efficiency. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Its durable design and reliable performance make it suitable for industries requiring large, multi-layer plastic products. The water tank system is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs.

Auto Feeder

hopper material

不锈钢stainless steel

Stable performance, easy maintenance

feeding type

弹簧上料spring loaded



feeding motor

2.2/2.2/2.2/2.2kw



 Extrusion System

Screw diameter

110/110/110/110mm

Nitrided 38CrMoAIA

Screw L/D ratio

28:1

special designed screw  can ensure the material plasticizing uniform and efficient

Extruder motor

75/75/75/75kw



Reducer

315/315/315/315

Best quality brand in china ,long life and low noise

Screw heating power

4.4kw*16



Plasticizing capacity

800kg/h
