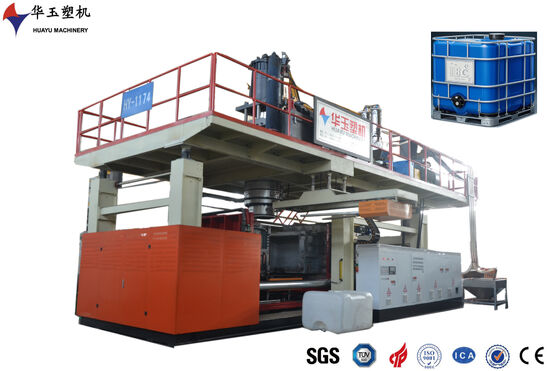

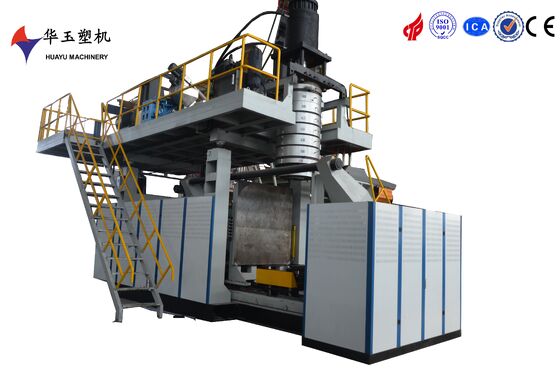

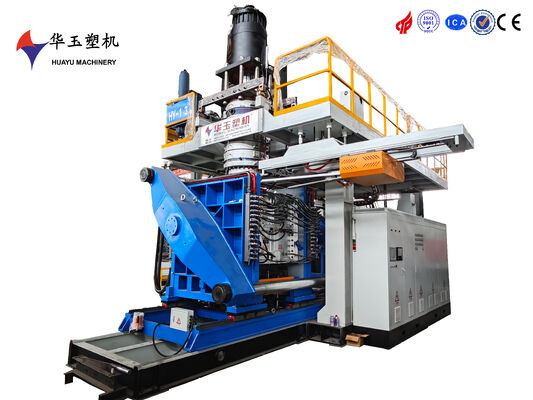

3000L 5-Layer Large Lightweight Water Tank Blow Molding Machine with Lightweight Cooling System

원래 장소 중국
브랜드 이름 HUAYU
인증 ISO9001 CE
모델 번호 HYBM3000-5
최소 주문 수량 1 세트
가격 380000 USD
포장 세부 사항 컨테이너 운송을 위해 많은 부품으로 분해됩니다
배달 시간 4 개월
지불 조건 t/t, l/c
공급 능력 1 세트 120 일

무료 샘플과 쿠폰을 받으려면 연락하세요.

WhatsApp:0086 18588475571

웨이 채팅: 0086 18588475571

스카이프: sales10@aixton.com

걱정이 있으시면 24시간 온라인 서비스를 제공합니다.

x
제품 상세 정보
기계 유형 기계를 만드는 고속 플라스틱 병 터치 스크린 지멘스
서보 밸브 Moog 가소화 능력 800kg/h
기어 박스 구마 오 청소 방법 쉬운 세정
호퍼 재료 스테인레스 스틸 기중 차단기 슈나이더
용량 범위 500--3000L, 5 층 곰팡이 냉각 시스템 공기 냉각
최대 공기압 0.8mpa 용량 1000 리터
먹이 모터 2.2/2.2/2.2kw 보장하다 1 년
금형 유형 단일 스테이션
강조하다

3000L water tank blow molding machine

,

5-layer lightweight water tank machine

,

blow molding machine with cooling system

필요한 제품을 선택하고 게시판에서 당사와 소통 할 수 있습니다.
메시지를 남겨주세요
제품 설명

This lightweight blow molding machine with a 3000L capacity and 5-layer co-extrusion is designed for efficient production of lightweight plastic products. The water tank system ensures efficient cooling and heat dissipation, maintaining optimal operating temperatures and enhancing production efficiency. The machine's advanced control system offers precise control over the molding process, ensuring consistent product quality. Its lightweight design and reliable performance make it suitable for industries requiring lightweight plastic products. The water tank is designed for easy maintenance and long-term reliability, making this machine a cost-effective and efficient solution for your production needs. The integrated lightweight cooling system further reduces energy consumption, making it an ideal choice for manufacturers looking to optimize their production processes while minimizing environmental impact.

 Clamping  System

platen size

2200*2400*70mm(W*H*T)

smooth running, no noise; the clamping force is big

clamping cylinder

200+300*2

clamping cylinder stroke

2100mm



clamping force

2200KN



distance between platens

1100-3200mm



ax. mould size

1700*2200mm(W*H)



 blowing and cooling system

stretching stroke

according to products



blow pin up/down stroke

600mm



air seat stroke

400mm



imum air pressure

0.8Mpa



air consumption

3m3/min



Cooling method

Circulating water



Water pressure

0.3MPa



Cooling water consumption

75m3/h
