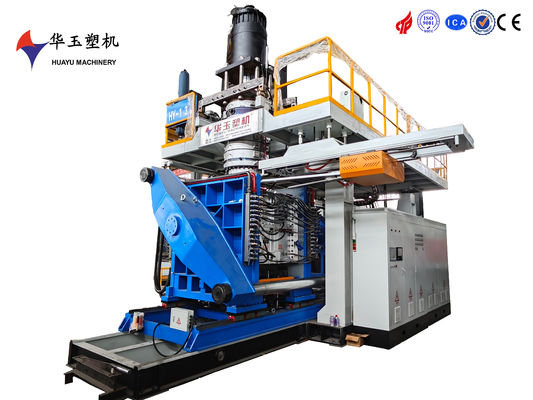

High Speed 2 Layers Blow Moulding Machine for Road Barrier Capacity and 180kw Power
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | Huayu |
| 인증 | CE,TUV,ISO9001，SGS |
| 모델 번호 | Hybm-road 장벽 |
| 최소 주문 수량 | 1 세트 |
| 가격 | negotiable |
| 포장 세부 사항 | 기계는 컨테이너 운송을 위해 여러 부품으로 분해됩니다. |
| 배달 시간 | 4개월 |
| 지불 조건 | l/c, t/t |
| 공급 능력 | 40sets/년 |
무료 샘플과 쿠폰을 받으려면 연락하세요.
WhatsApp:0086 18588475571
웨이 채팅: 0086 18588475571
스카이프: sales10@aixton.com
걱정이 있으시면 24시간 온라인 서비스를 제공합니다.
x제품 상세 정보
| 용량 | 도로 장애물 | 레이어 | 2 층 |
|---|---|---|---|
| 전압 | 요구 사항으로 | 색상 | 요구 사항으로 |
| 크기 | 7*5.4*5.2 | 총 전력 | 180kW |
| 강조하다 | 2 layers blow moulding machine,road barrier blow molding machine 180kw,high speed blow moulding machine for road barriers |
||
제품 설명
HYBM-Road barrier
1. machine specification
|
road barrier |
2layers |
| Capacity rang | / |
| Machine dimension | 7*5.4*5.2 |
| Average | 100KW |
| Total power | 180KW |
| Accumulator capacity | 18KG |
| E*truder motor | 37KW*2 |
| Screw diameter | 90MM*2 |
| Screw L/D ratio | 30:1 |
| Plasticizing capacity | 200KG/H |
| Platen size | 1000*1200MM |
| Platen distance | 850-2000MM |
| Clamping force | 800KN |
| Servo motor | 28KW |
2.machine details
Huayu patented three-cylinder rapid opening and closing mold locking system
Huayu patented integrated hydraulic station
The world-famous Taiwan Shangyin guide rail has more sliders, more reasonable load bearing and more stable operation
High speed screw

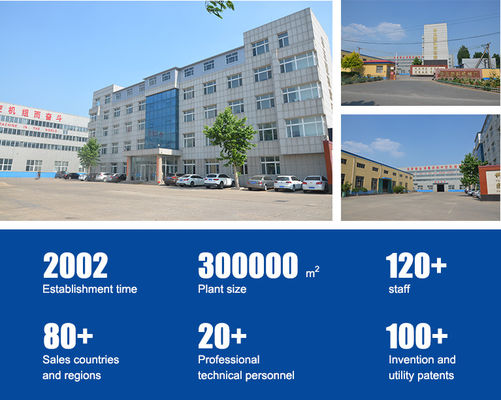

3. company advantage
Experienced Engineer Team, Top Brand Accessories, Strict Quality Control and Certification System, Powerful Machining and Processing Ability, Create the High Quality Huayu Machinery!
In the design and production process of Huayu Hollow Blow Molding Machine, the latest technology and supporting facilities are adopted, such as German SEW reducer, Siemens PLC controller, American Muger wall thickness controller, etc., to further optimize the overall performance of the equipment and expand its application fields.
Provide customers with technical guidance and continuous optimization of products for life.
